On Monday, reminiscence and garage seller Micron introduced that its new 176-layer 3-d NAND (the garage medium underlying maximum SSDs) procedure is in manufacturing and has begun transport to consumers. The brand new generation will have to be offering upper garage densities and write staying power, higher efficiency, and decrease prices.
Substitute-gate structure

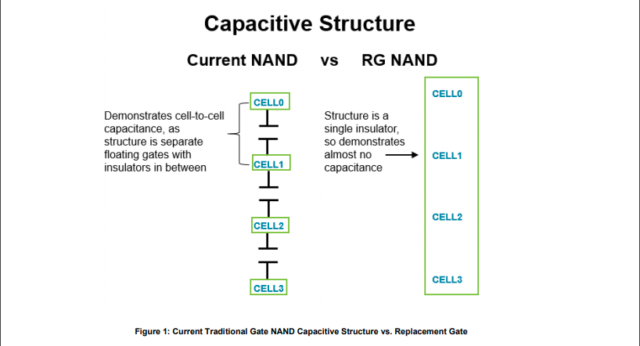

The brand new NAND procedure is Micron’s 5th era of NAND and its 2nd era of replacement-gate structure—a substitute to the sooner, floating-gate structure utilized by each Micron and Intel prior to now. In conventional floating gates, insulators separate particular person cells, which ends up in undesired capacitance between cells.
Micron’s replacement-gate structure as a substitute builds more than one cells right into a unmarried insulating construction, nearly getting rid of cell-to-cell capacitance, and (in step with Micron) expanding write staying power, energy potency, and function. The corporate has now not but supplied concrete benchmarks quantifying those claims.
Higher layer depend
The brand new 3-d NAND procedure builds extra cellular layers into each and every chip, providing larger garage density, decrease get admission to latencies, and higher energy potency. For reference, Micron’s present floating-gate NAND provides 96 layers, its earlier era of replacement-gate NAND introduced 128, and Western Virtual’s BiCS5 3-d NAND procedure provides 112 layers.
Expanding layer depend manner considerably lowering die measurement on the identical choice of garage cells. Micron claims the brand new chips function 30-percent lowered die measurement over best-in-class aggressive choices. This makes upper garage capability more effective in smaller shape elements.
We will have to be transparent, the practicality of greater garage in smaller shape elements right here manner very small shape elements, corresponding to M.2 NVME drives and built-in eMMC garage. Despite the fact that shoppers are aware of upper capability in typical disks than in SSDs, the limitation is price, now not quantity. Garage seller Nimbus started promoting a 100TB SSD within the conventional three.Five-inch arduous power shape issue greater than two years in the past; in the meantime, Western Virtual handiest started promoting 20TB typical arduous drives this July.
Along with the greater areal density, Micron says the brand new procedure provides important enhancements in each learn and write latency—a 35-percent growth in comparison to its present floating-gate NAND and a 25-percent growth over its first-generation replacement-gate NAND.
The largest efficiency takeaways right here don’t seem to be to be discovered within the standard collection of overwhelmingly massive numbers liked by means of advertising and marketing departments—this is, absolutely the most sensible velocity a power can reach for very massive operations beneath very best prerequisites. Extra importantly, they imply stepped forward High quality of Provider (QoS)—in different phrases, extra constant speeds, even beneath lower than very best workloads and prerequisites.
Micron’s newly stepped forward latencies will have to additionally imply higher efficiency at the low finish—in different phrases, 4KiB or smaller blocksize operations, which don’t seem to be being carried out in vastly parallel workloads.
What this is able to imply for shoppers and undertaking
If Micron’s claims of a great deal greater write staying power pan out, it could turn out to be imaginable to switch extremely pricey SLC (Unmarried Layer Cellular) undertaking/information heart SSDs with a lot inexpensive 3-d NAND units in difficult programs. In the meantime—assuming no massive building up in per-wafer production price—the kind of one-third building up in garage density in step with chip may just imply in a similar way more cost effective client units.
We do not be expecting this to be the dying knell for standard arduous drives but. Even in the most efficient imaginable case—no building up in production price by any means—this could put the fee in step with terabyte of TLC NAND someplace round $85. The fee in step with TB of typical arduous drives runs about $27, so there may be nonetheless a lot of air between the 2 applied sciences on the subject of worth.
